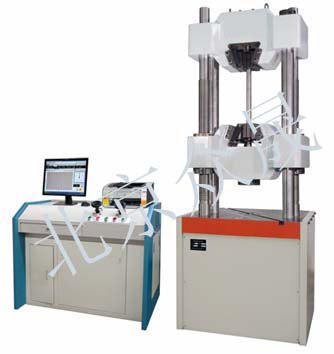

Microcomputer screen display hydraulic universal testing machine WEW-100D

Microcomputer screen display hydraulic universal testing machine WEW-100D

Model: WEW-100D

I. Performance Description:

      This testing machine is a downward-mounted hydraulic universal testing machine, which is mainly used for tensile, compression, bending, shear and other tests of metal materials and non-metallic materials such as cement, concrete, plastics, etc. It can be used for testing of steel strand, wire rope, chain, welding tape and components. Adding accessories, it can complete the mechanical property test of steel stranded wire, steel wire rope, chain, welding rod, adhesive tape and components. Widely used in machinery, metallurgy, transportation, construction, building materials, colleges and universities, quality inspection and other industries and departments. Reliable performance, economical and practical, is the ideal testing machine for material testing in production and engineering.

      This testing machine according to the national GB/T3159-2008 "hydraulic universal testing machine" design and manufacture. It adopts hydraulic transducer to measure the force, electronic inducer to test the tensile deformation, and computer to process the operation data, with the functions of screen display and storage of test data, curve drawing and analysis, and printing results.

Second, the main specifications, technical parameters and technical indicators:

   1、 the maximum test force: 100 kN

   2、the accuracy of the test machine: 1 level

   3、Maximum tensile space: 550mm

   4、Maximum compression space: 450mm

   5、flat specimen clamping range: 0-15mm

   6、round specimen clamping diameter: Φ4-Φ20mm

   7、Diameter of platen: Φ120mm

   8、the distance between the two columns: 460mm

   9、bending support roller spacing: 30-400mm

   10、bending indenter diameter: Φ30

   11、Working piston stroke: 200mm

   12、 the maximum permissible relative error ±1% of the display value

   13、clamping: hydraulic clamping

   14、oil pump motor power: 2.2KW

   15、beam moving motor power: 0.37KW

   16、host size: 740 × 580 × 1890 (mm)

   17、control cabinet size: 1020 × 620 × 810 (mm)

   18、Weight: 1500 (kg)

Third, the main accessories configuration:

  1, round specimen jaws Ф4 ~ Ф10 1 payment

  2, round specimen jaws Ф10 ~ Ф20 1 payment

  3, flat specimen jaws 0 ~ 15 1 payment

  4, compressive appliance upper and lower pressure plate, spherical seat plate 1 set

  5, bending test attachment 1 set

  6, ground nut screws 4

  7, a set of measurement and control system including (Lenovo computer 1, Note: 17-inch LCD laser printer 1, oil pressure sensor 1)

  8, electronic extensometer 1

  9, special measurement and control software 1 set (installed in the microcomputer)
