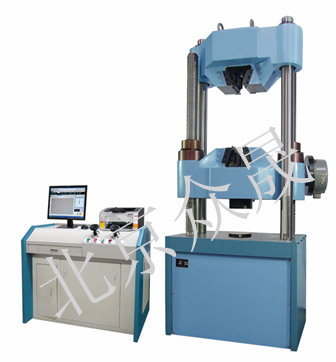

WEW-1000C Microcomputer screen display hydraulic universal testing machine

WEW-1000C microcomputer screen display hydraulic universal testing machine

I. Overview:

       This testing machine is a downward-mounted hydraulic universal testing machine, which is mainly used for tensile, compression, bending, shear and other tests of metal materials and non-metallic materials such as cement, concrete, plastics, etc. The machine can be used to test the mechanical properties of steel strand, wire rope, chain, welding tape and components. Adding accessories, it can complete the mechanical property test of steel strand, steel wire rope, chain, welding rod, tape and components. Widely used in machinery, metallurgy, transportation, construction, building materials, colleges and universities, quality inspection and other industries and departments. Reliable performance, economical and practical, is the ideal testing machine for material testing in production and engineering.

       This testing machine according to the national GB/T3159-2008 "hydraulic universal testing machine" design and manufacture. It adopts hydraulic loading, hydraulic transducer to measure the force, electronic derivation meter to test the tensile deformation, and computer to process the operation data, with the functions of screen display and storage of test data, curve drawing and analysis, and printing results.

       Worm gear structure of the host, the screw is fixed, worm gear vice installed in the moving beam, driven by disk motor.

Second, the technical parameters indicators:

  1, Maximum test force: 1000 kN

  2, Accuracy of display value: 1 level

  3, Maximum spacing of tensile jaws: 600mm (including cylinder stroke)

  4, flat specimen clamping thickness: 0-40 mm (standard 0-20 mm)

  5, round sample clamping diameter: Φ13-60 mm

  6, Distance of compression space: 500 mm

  7, Working piston stroke: 255 mm

  8, the maximum permissible relative error ±1% of the display value

  9, bending test roller spacing: 40-315 mm

  10, Distance between two pillars: 620 mm

  11, the upper and lower pressure plate size: 204 × 204 mm

  12, bending roller diameter: Ф40mm

  13, clamping: hydraulic clamping

  14, oil pump motor power: 2.2KW

  15, beam moving motor power: 1.1KW

  16, host size: 1170 × 750 × 2300mm

  17, Size of oil source: 1020×620×810mm

  18, Weight: 4000kg

Third, the main accessories configuration

  1, round specimen jaws Ф13 ~ Ф26 1 payment

  2, round specimen jaws Ф26 ~ Ф40 1 payment

  3, flat specimen jaws 0 ~ 20 1 payment

  4, compressive appliance upper and lower pressure plate, spherical seat plate 1 set

  5, bending test attachment 1 set

  6, ground nut screws 4

  7, a set of measurement and control system including: Lenovo computer (17 'LCD one, HP laser printer one,

                       Oil pressure sensor, an electronic extensometer,

                       A set of special measurement and control software (installed in the microcomputer))
