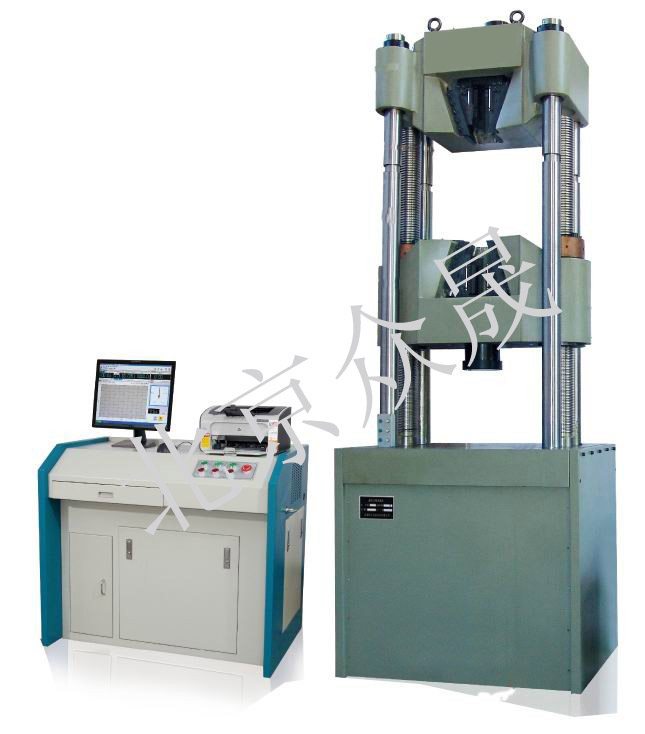

WEW-1000D Microcomputer screen display hydraulic universal testing machine

WEW-1000D microcomputer screen display hydraulic universal testing machine

I. Overview:

       This testing machine is a downward-mounted hydraulic universal testing machine, which is mainly used for tensile, compression, bending, shear and other tests of metal materials and non-metallic materials such as cement, concrete, plastics and so on. Adding accessories, it can complete the mechanical property test of steel strand, steel wire rope, chain, welding rod, tape and components. Widely used in machinery, metallurgy, transportation, construction, building materials, colleges and universities, quality inspection and other industries and departments. Reliable performance, economical and practical, is the ideal testing machine for material testing in production and engineering.

      This testing machine according to the national GB/T3159-2008 "hydraulic universal testing machine" design and manufacture. It adopts hydraulic transducer to measure the force, electronic derivation meter to test the tensile deformation, and computer to process and calculate the data, with the functions of test data screen display and storage, curve drawing and analysis, and printing results.

Second, the main specifications, technical parameters and technical indicators

  1、Maximum test force: 1000 kN

  2、Accuracy of the testing machine: ± 1%

  3、Maximum tensile space: 650mm

  4、Maximum compression space: 520mm

  5、flat specimen clamping thickness: 0-40mm (standard 0-20mm)

  6、 round specimen clamping diameter: Φ13-60mm

  7、pressure plate size: 204 × 204mm

  8、 the distance between the two columns: 510mm

  9、bending support roller spacing: 40-400mm

  10、Bending indenter: Φ40

  11、Working piston stroke: 250mm

  12、 the maximum permissible relative error ±1% of the display value

  13、 Clamping: hydraulic clamping

  14、oil pump motor power: 2.2KW

  15、beam moving motor power: 0.55KW

  16、 host size: 880 × 760 × 2360 (mm)

  17、control cabinet size: 1020 × 620 × 810 (mm)

  18、Weight: 3500(kg)

Third, the main accessories configuration

  1, round specimen jaws Ф13 ~ Ф26 1 payment

  2, round specimen jaws Ф26 ~ Ф40 1 payment

  3, round specimen jaws Ф40 ~ Ф60 1 payment

  4, Flat specimen jaws 0～20 1付

  5, compressive appliance upper and lower pressure plate, spherical seat plate 1 set

  6, bending test attachment 1 set

  7, ground nut screws 4

  8, a set of measurement and control system including (Lenovo computer 1, Note: 17-inch LCD monitor)

                       Laser printer 1, oil pressure sensor 1)

  9, Electronic extensometer 1

  10, special measurement and control software 1 set (installed in the microcomputer)
